For procurement managers and operations leads sourcing packaging in California, the corrugated flute profile is a fundamental engineering specification. It dictates performance, print quality, and landed cost. Choosing between A, B, C, and E flutes isn't arbitrary, it's a calculated decision balancing protection, presentation, and price.
At Rox Packaging, our 25-year foundation in serving California's CPG, food and beverage, beauty, and 3PL manufacturers is built on guiding clients through these precise technical choices. This guide decodes flute profiles with the specificity required for pallet-scale, quote-based procurement (MOQ 1,000+ units).
1. Flute Fundamentals: More Than Just Thickness

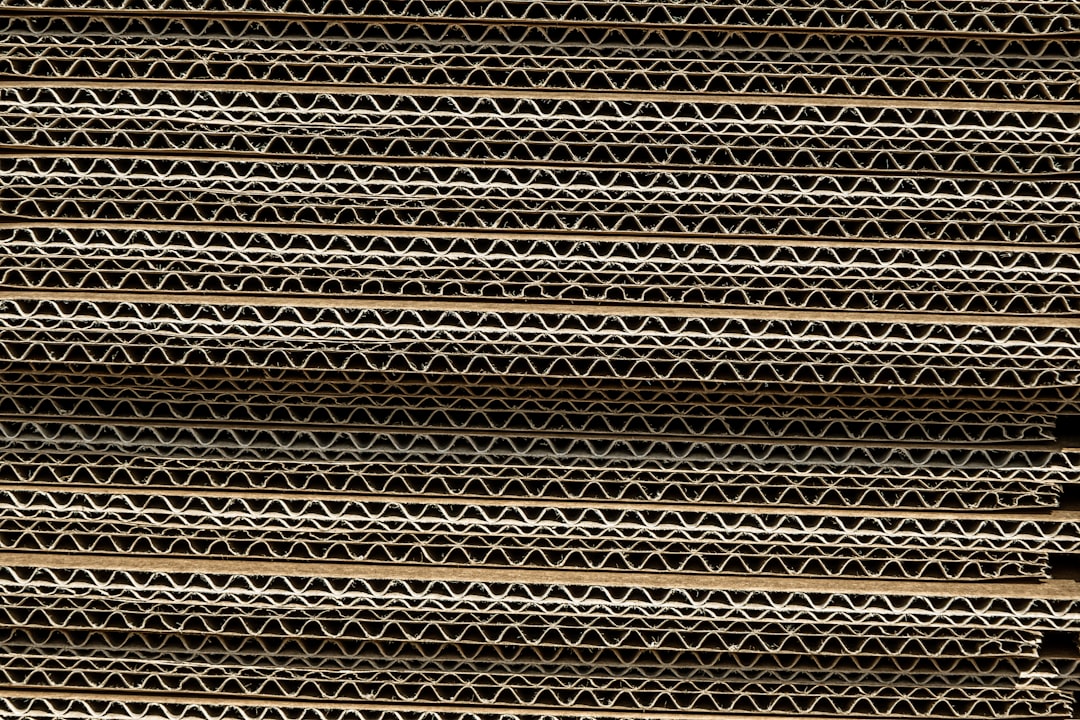

A corrugated board's structure consists of a fluted medium sandwiched between linerboards. The flute profile refers to the height and spacing of these waves. This architecture determines the board's key physical properties: stacking strength (ECT), cushioning, rigidity, and surface smoothness.
The most common profiles are defined by an alphabetical sequence largely based on historical development, not performance hierarchy. Here are the core metrics.
| Flute | Flutes per Foot (approx.) | Thickness (inches) | Primary Characteristic |
|---|---|---|---|
| A | 33 +/- 3 | 3/16" | Greatest cushioning/stack strength |
| C | 39 +/- 3 | 5/32" | All-purpose balance of cushion & crush |
| B | 47 +/- 3 | 1/8" | Excellent crush resistance, good print surface |
| E | 90 +/- 4 | 1/16" | Superior print surface, good rigidity |
2. Profile Deep Dive: Strengths, Weaknesses, and Applications
A-Flute: The Heavyweight Stacker
With the tallest flute height, A-flute offers superior vertical compression strength (ECT) and exceptional cushioning. It's engineered for heavy loads and high-stack warehouse environments.
Ideal for: Master shipping cases for heavy products (canned goods, bottled beverages), industrial parts, and products requiring significant void fill or cushioning protection. Consider: Its thickness reduces carton yield per sheet, increasing material cost. The pronounced flute profile can challenge high-quality graphic printing.
B-Flute: The Dense Workhorse
B-flute's high flute count creates a dense, rigid structure with excellent resistance to box crush (flat crush test). It provides a flatter surface than A or C flute for better printing.
Ideal for: Retail-ready boxes, canned food partitions, inner packing components, and die-cut pads where a balance of rigidity and a decent printing surface is needed. Consider: It offers less cushioning than A or C flute. For primary protection of fragile items, additional interior packaging may be required.
C-Flute: The North American Standard
C-flute is the most common profile in the US, offering a reliable compromise between the cushioning of A-flute and the flat crush of B-flute. It provides good all-around performance for shipping, stacking, and printing.
Ideal for: The default choice for regular slotted containers (RSCs) across CPG, food, and general industrial applications. It's widely available and cost-effective at volume. Consider: While versatile, it may not be the optimal specialist choice for either extreme top-load strength or premium graphic reproduction.
E-Flute: The Premium Print Surface
With 90 flutes per foot, E-flute is thin, dense, and creates an exceptionally smooth, rigid surface. It approaches the look and feel of a folding carton but with the durability of corrugated.
Ideal for: High-graphic retail boxes, beauty product packaging, cosmetic displays, and premium food packaging (gourmet, subscription boxes). It's also excellent for intricate die-cuts. Consider: Lower vertical stack strength than C-flute. It wins on cost-per-unit when you factor in reduced void fill, superior unboxing experience, and potential for downgauging from a thicker board.
3. The Procurement Matrix: Stack Strength vs. Printability vs. Cost
Choosing a flute is a three-variable equation. The right answer depends on your product's primary need.
| Priority Need | Recommended Flute Profile(s) | Rationale |
|---|---|---|
| Maximum Pallet Stack Strength | A-flute, C-flute | Taller flutes provide superior column strength for warehouse storage. ECT rating is critical here. |
| Superior Graphic Reproduction | E-flute, B-flute | Smoother surface allows for higher line screens, finer detail, and better ink adhesion. |
| Optimal Cost-Per-Unit (High Volume) | C-flute | Best balance of material efficiency, performance, and machine availability. |
| Reduced Packaging Volume/Weight | E-flute | Thinner board reduces dimensional weight (DIM), storage space, and can lower void fill needs. |
| Primary Fragility Protection | A-flute, C-flute | Greater flute height absorbs shock and vibration during transit more effectively. |
4. When E-Flute Beats C-Flute: A Case for Engineering Over Habit
Procurement teams often default to C-flute. However, for many of California's beauty, boutique CPG, and high-end food clients, E-flute is the more engineered, cost-effective solution.
Scenario: A skincare brand ships a 12-ounce glass jar. A C-flute RSC may require molded pulp inserts. An E-flute box, with its superior rigidity, can be designed with fitted interior structures that eliminate the separate insert, simplifying assembly and reducing total material. The E-flute box also ships flat in a smaller footprint, lowering warehouse storage costs. The superior print quality enhances shelf presence, potentially increasing sell-through. The Math: Compare the total delivered cost: C-flute box + insert + assembly labor vs. E-flute box with integrated protection. The latter often wins on unit economics for runs of 1,000+ units where tooling is amortized.
For more on sustainable packaging design that reduces material, visit our page on packaging sustainability.
5. Specifying Flute Profiles in Your RFQ
Clarity in your request for quote ensures accurate pricing and sample validation. When you submit an RFQ via /quote.html, include:
- Product Dimensions & Weight: Exact finished product specs.
- Performance Requirement: Target ECT or Mullen (burst test), and max pallet stack height.
- Printing & Finishing: Detail number of colors, need for coated liners, and any special coatings (aqueous, UV).
- Flute Profile Preference: Based on the matrix above, state your preference (e.g., "E-flute preferred for print quality, open to C-flute with cost comparison").
- Volume & Cadence: Initial order quantity and projected annual usage.
This data allows our team to engineer a solution that meets your technical and budgetary targets. Explore our full corrugated product lineup for more context.
6. Next Steps for California Procurement Teams
Your packaging is a system. The flute profile is one critical component. Partner with a supplier that understands the engineering behind the carton.
Rox Packaging provides technical guidance grounded in material science and California manufacturing logistics. We serve clients who order by the pallet and think in terms of total cost, not just unit price.
